ALLEN & HEATH XONE-23 DAH Mixer

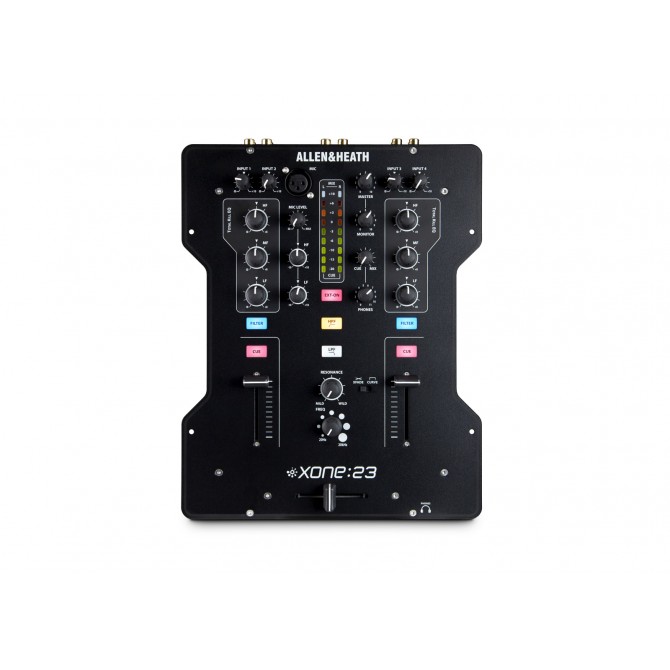

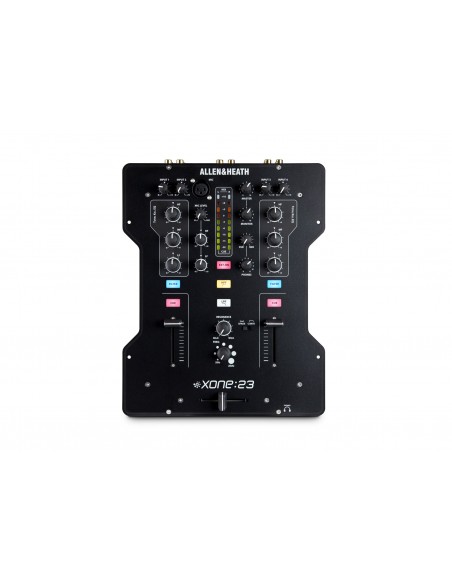

The XONE23 is a 2-channel DJ console with very accomplished professional features, worthy of the brand's consoles whose worldwide reputation is indisputable. The XONE23 incorporates an improved version of the legendary Xone filter with resonance control, VCA faders, a 3-band "Total Kill" EQ section, bright keys, a crossfader curve selector, all in the style inspired by the XONE-DB4.

The heart of the console is distinguished by the analog control filter (VCF) which offers a low-pass and high-pass filter, "soft to strong" scan frequency control, and resonance control. There is an effects loop to connect an external effect, the return of which crosses the filtering system. The 2 stereo channels have independent level control for each input allowing up to four stereo sources (2+2) to be mixed and mixed during a set. It has a large gain reserve of 20 dB on XLR outputs, with a level of +28 dBu at most; which means no signal distortion, as may be the case on more expensive mixers. The XONE23 can also become a powerful Scratch mixer by replacing the cross fader (Innofader) optimized and responding to the most demanding scratchers

. Designed from the design of the XONE-DB4, the XONE23 has a soft-touch streamlined front, with backlit controls and a unique shape that sets it apart in this category from other consoles on the market.

- 2 + 2 channels with two phono/line inputs

- VCF filter: low-pass + high-pass frequency controls + resonance

- 3-band EQ - "Total Kill"

- External effects loop

- Microphone input on XLR, with EQ 2 bands

- Main output on XLR

- Additional output BOOTH

- Recording output

- Headphone output on 3.5 and 6.35 mm connectors

- Faders VCA

- Adjustable crossfader (adjustment of the crossfader curve)

- Dynamic range of 20 dB (professional standard)

- Bargraph of 9 segments for level control

- Robust construction, ideal for Touring (ep. 2 mm steel façade)

- Weight: 2.7 kg

- Option: Innofader

- Crossfader special scratch here
