Stock B, No Original Box

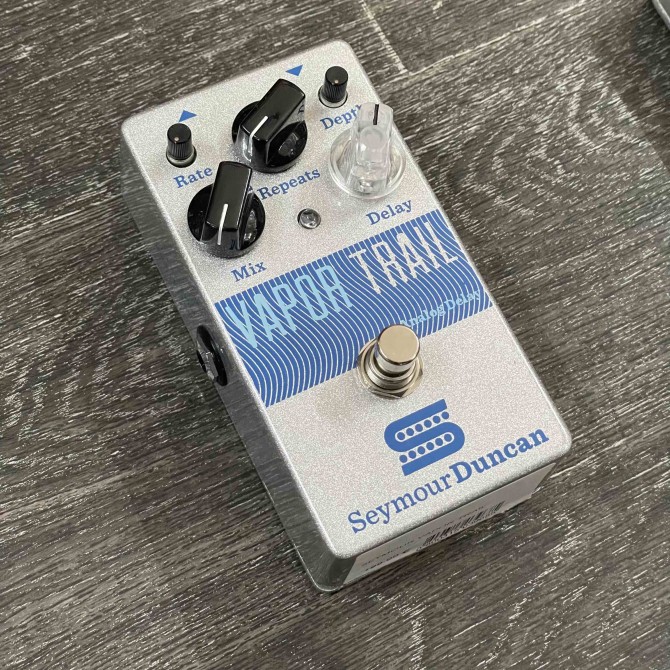

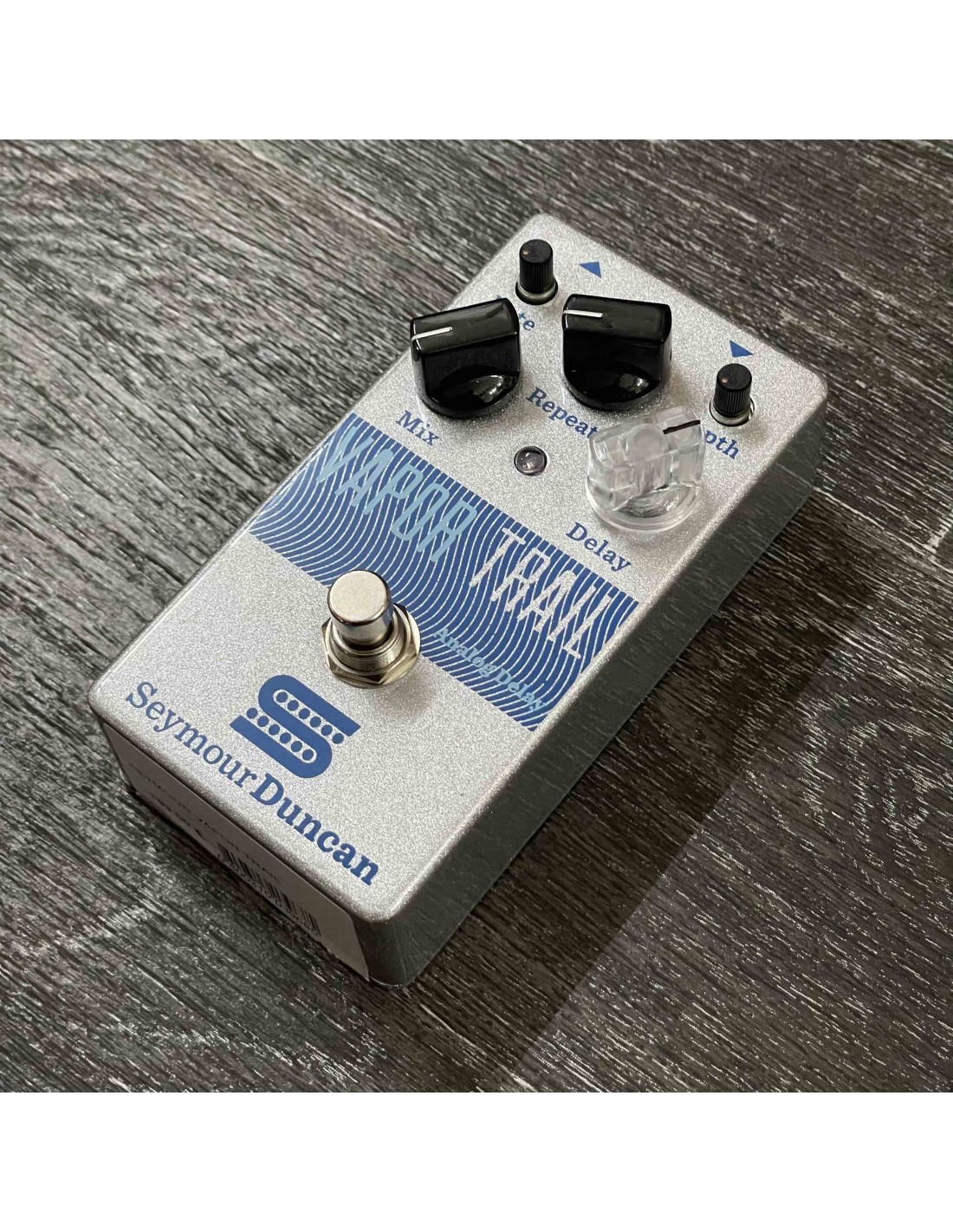

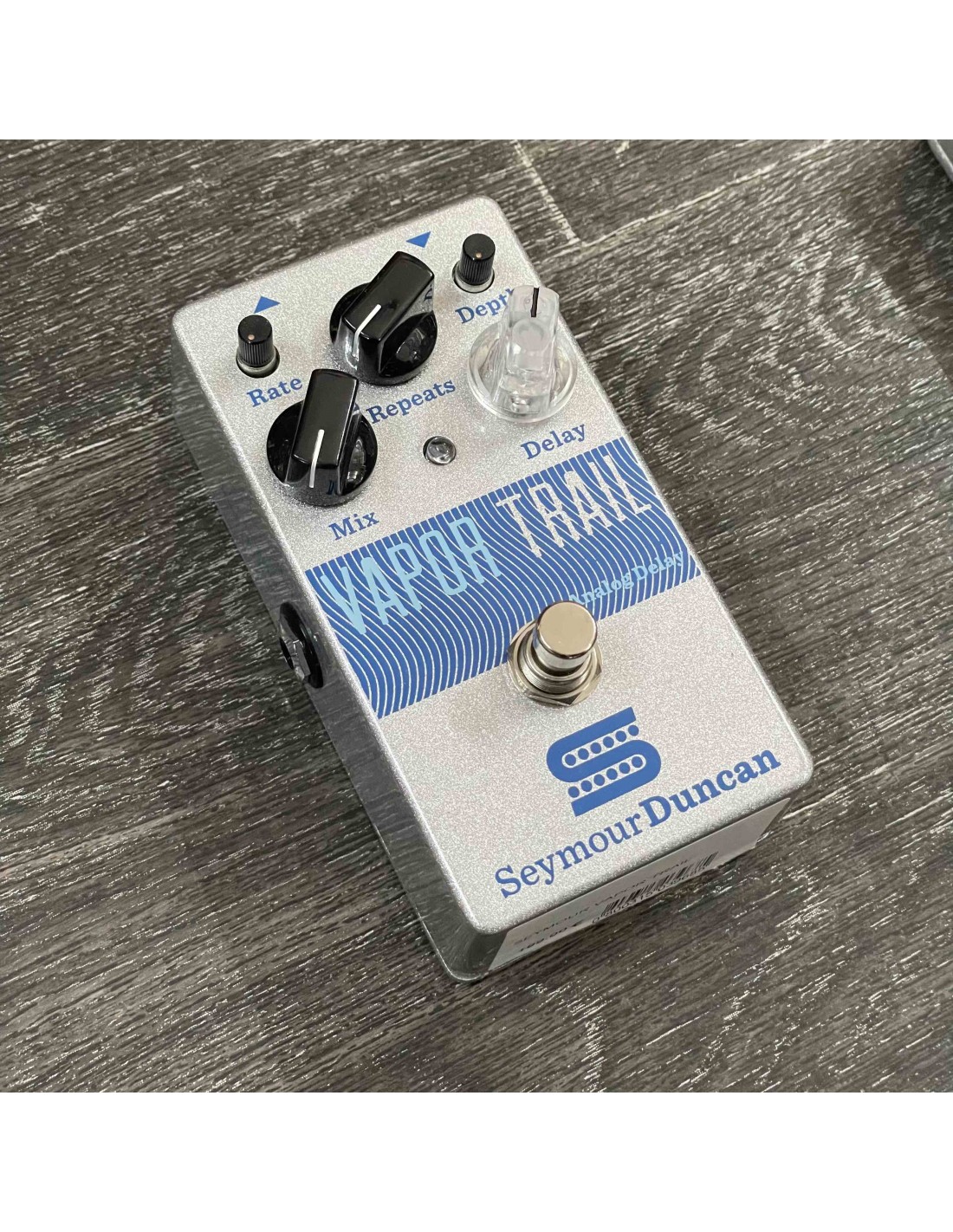

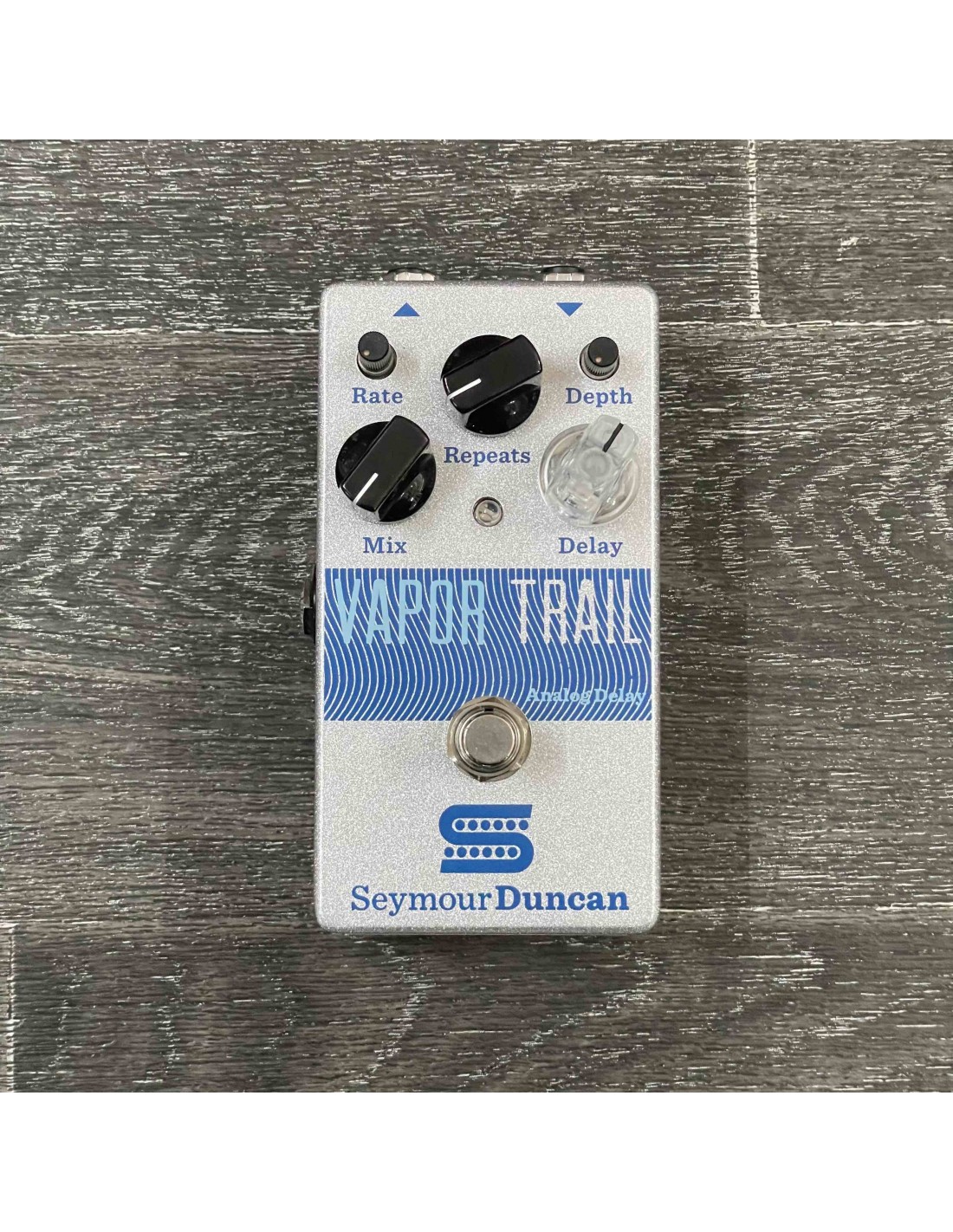

The sound also has a string clarity that prevents your sound from getting lost in the mix. Responsive modulation controls add shimmer and movement to your sound delay – with the Rate and Depth controls mounted directly on the top panel so you can easily adjust them even in a live setting. This is facilitated by the fact that the Delay button is translucent with a blue LED flashing for you donner visual feedback on the delay duration you have selected.
A TRS insert jack allows you to add effects to the wet signal (loop the wet sound delay through a flanger, chorus, or any other type of effect). You can also use this jack to emit a wet-only signal for parallel effects loops or multi-amplifier configurations, or you can plug in any standard volume type pedal, turn the Mix button full throttle, and vary the amount of wet signal from none to wet using the pedal. With the maximum Wet setting, the first echo is actually 3 dB louder than the dry signal.
Characteristics
Circuit Type: Analog bucket brigade (BBD) devices supported by modern low-noise analog electronics. No microprocessors or digital signal processors.
Bypass: Real easel age
Delay Distance: 15ms to 600ms. The actual delay time is indicated by the flashing frequency of the illuminated time delay button.
Dry gain: fixed 1 dB
Wet Gain: Adjustable from mute to +3 dB. With the highest mixing settings, the first echo is actually louder than the dry signal.
Repeat Control Range: A Repeat for Fugitive Repetitions
Modulation rate range: 0.2 Hz to 4 Hz
Modulation depth range: Zero to "over the top"
Auxiliary functions: Wet channel insertion loop, allows to apply external effects only to the wet signal. Also serves as a wet-only output for stereo or studio use in wet/dry mode.
Dry frequency response: <-1 dB @ 10 Hz and 100 kHz
Dry Distortion: 0.002% at 250Hz, 1V RMS output
Dry noise level: -100 dBv at output, 400 Hz to 20 kHz with input not plugged in
Wet Noise Floor: -90 dBV at output, 400 Hz to 20 kHz
Input impedance: 1 Meg (active); bypassed
Output impedance: 1K ohm

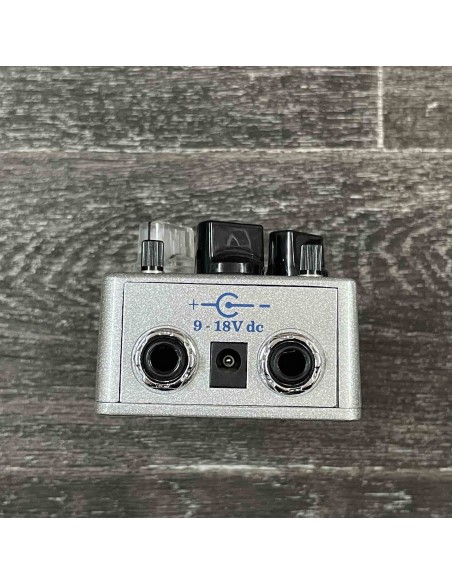

Power supply: 9V internal battery or regulated 9V-18V external power supply.
Current consumption: 11 mA typical
Dimensions: Chassis dimensions 2.61" x 4.90" x 1.45" (L x W x H)
Weight: 0.8lb. without battery
