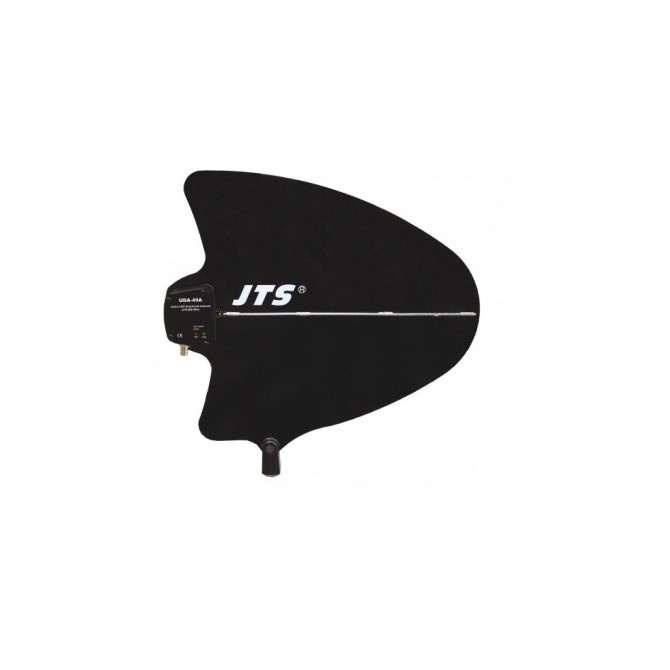

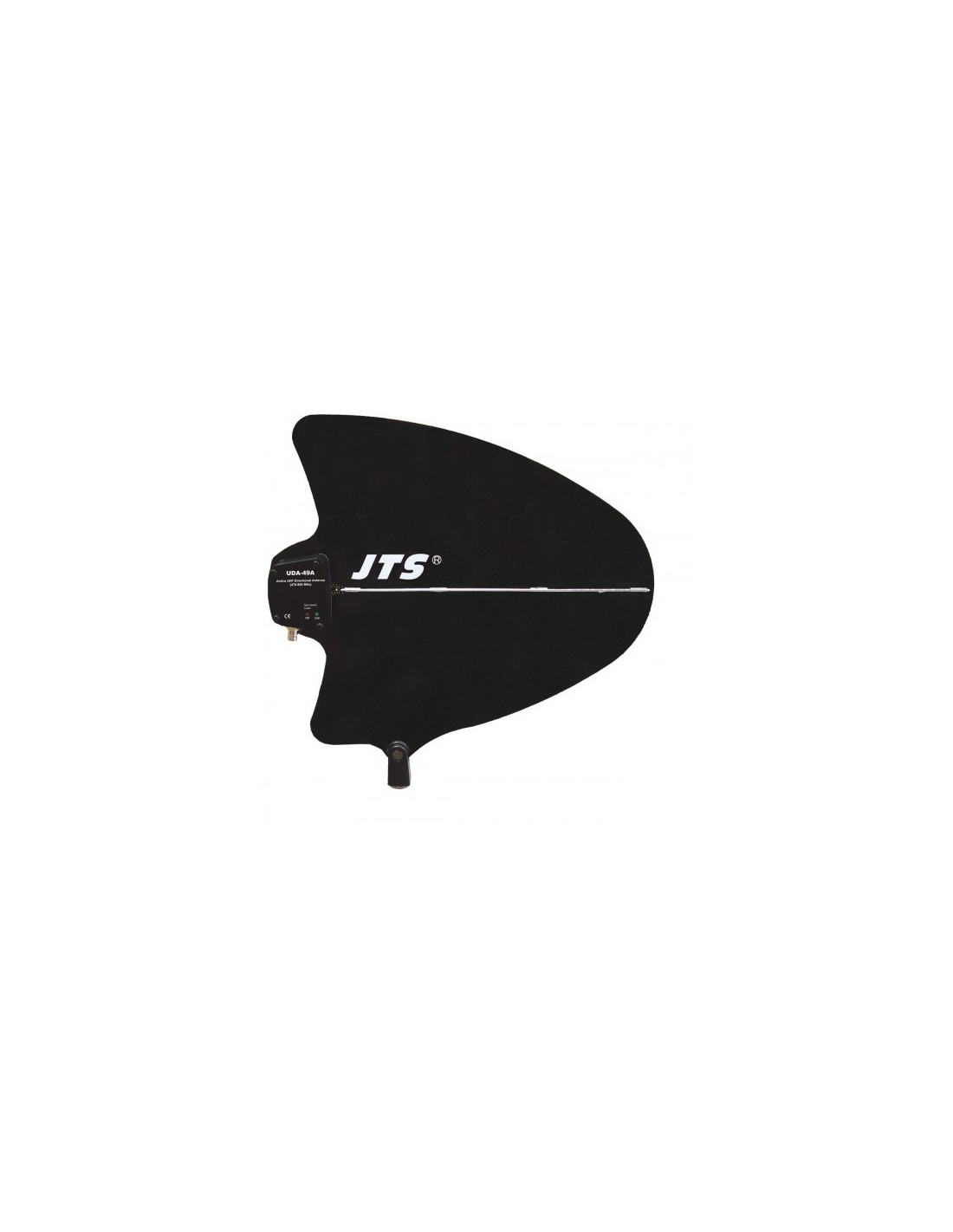

JTS UDA-49A Active Directional UHF Antenna

- Better reception and greater range in the range 470-960 MHz

- Elimination of interfering HF signals, reduction of erasures by multi-channel reception, increased resistance to interference

- Reliable operation even for short outdoor applications

- Switchable amplification 3 dB/10 dB to compensate for power losses

- Dc 12 V/50 mA remote power supply

- BNC connection

- Power supply via US-/IN- series PLL UHF receiver or via UA-960 active antenna splitter Ideal for mobile use, possibility of mounting on a microphone stand with thread 9 mm (") or 16 mm (")

- For Diversity reception, two UDA-49A are required.

- Bandwidth 470-960 MHz

- 100° aperture angle

- Antenna gain 10 dB

- DC power supply 12 V/50 mA. power supply (external power supply)

- Characteristic impedance 50 Ohms

- Support 9 mm (") resp. 16 mm (")

- Dimensions 360 x 350 x 36 mm (1.7 mm thickness)

- Weight 350 g

- BNC plug connections
